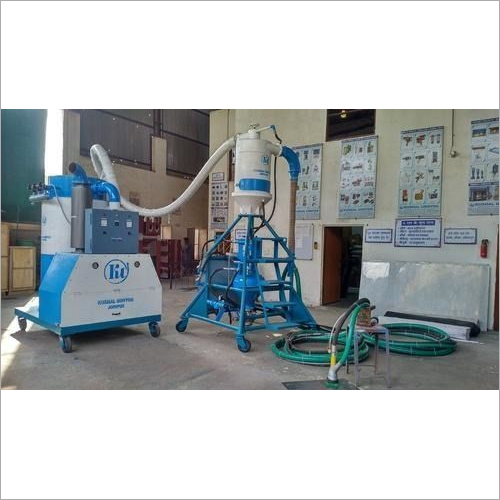

Continuous Type Vacuum Blasting Equipment

Continuous Type Vacuum Blasting Equipment
Continuous Type Vacuum Blasting Equipment
Product Code : KUV-15C
Brand Name : Kushal Udhyog
Product Description

Outfitted with a latest technical setup and highly skilled team of professionals, we are engaged n manufacturing and supplying Continuous Type Vacuum Blasting Equipment. To manufacture this equipment, we use optimum quality mild steel and cast iron. This equipment is suitable for surface treatment of products like metal, plastic and glass. Clients can obtain this Continuous Type Vacuum Blasting Equipment from us in different technical specifications as per their requirements. We offer this equipment at reasonable prices.

Key Features

  • Robust construction
  • Easy to operate
  • Longer working life

Continuous Type Vacuum Blasting Equipment

Specifications:

1. Power Consumption: 30.0 H.P. (22.5 KW), Electric Motor of Vacuum Pump at 415 v / 3P / 50 Hz / AC Supply. Customer to provide electrical supply up to the control panel of the machine.
2. Air Consumption: Dry and Oil Free compressed air 12.75 mt.cub / min. (450 cfm), 5.44 kg/cm sq. (80 psig) for reverse dust collector. The buyer to arrange dry and oil free compressed air at the inlet of the machine. The machine can also operate at lower pressure upto 5 kg./cm sq.
3. Abrasive Capacity of Reclaimer Hopper: Approx. 150 kgs Metallic Grit.
4. Blast Generator: Pressure Vessels are fabricated from 6mm thick steel plate as per IS  2825 and hydraulically tested at 250 psi. Upper Pressure Vessel Approx. 30.0 Ltrs. (1 cft) Lower Pressure Vessel Approx. 60.0 Ltrs. (2 cft) Overall Dimensions of Reclaimer Generator 2000 mm (W) x 2000 mm (D) x 3600 mm (H)
5. Blast Cycle: Automatic Recycling and Continuous.
6. Blast Gun: 2 Nos. Fitted with 9.5 mm supersonic TC Lined Nozzles.
7. Blast Hose: Blast Hose supplied with the machine 2 Nos. 25 mm I.D. (1") x 15.0 Mtrs. in length, 4 ply construction, wear resistant, antistatic suitable for working pressure of 7 kg / sq cm.
8. Suction Hose for Standard Machine : 1 No. : 125 mm (5" ID) x 1.5 mtrs. length 2 Nos. : 75 mm (3" ID) x 9.0 Mts. length 2 Nos. : 50 mm (2" ID) x 6.0 Mtrs. length
9. Vacuum Suction Hose between Reclaimer and Dust Collector : 152 mm (6) ID Vacuum hose x 4.5 mtrs. length
10. Recommended Abrasive: Chilled Iron Grit or Steel Grit , Size BS Mesh 10 to 36 (1.70 mm to 0.42mm).
11. Flow Rate of Grit: Approx 10.0 kgs per minute per nozzle.
12. Surface Finishing Achievable: Surface Finish can be achieved to SA 2.5 swedish standards.
13. Production Output Expected: 10 to 12 sq. mtr / hr / nozzle depending upon surface condition prior to blasting.
14. Recovery System Through Vacuum Pump : Electric Motor Driven, Root Type, Positive displacement 30.0 H.P. (22.5 KW), TEFC Motor, 415 V / 3P/50 Hz. With star delta starter with overload relay protection. Capacity Approx. 800 cfm. At inlet air pressure 10HG.
15. Control System: Through air supply pressure.
16. Feed Valve: Twin Tube Type and adjustable at each outlet.
17. Dust Collector: Paper element cartridge type reverse pulse cleaning. The cartridge elements are imported type having long life, highest filtration efficiency and porosity of 0.2 microns with fractional efficiency 99.999 % 0.5 Micron Particles. Overall Dimensions of Dust Collector Unit 2000 mm (W) x 1600 mm (D) x 3200 mm (H).
18. Min. Recommended Compressed Air Supply Connection 50 (2") N.B.
19. Mushroom Valve: Ceramic Coated Mushroom Valve for Long Life.
20. Zinc Metallizing: Outside of the machine is coated by zinc spraying (100 to 125 Microns Thick) for protection against corrosion.
21. Color / Painting: Inside and Outside surface of the equipment will be brush cleaned and given two coats of Red Oxide Primer. Final Coat on exterior of the system is synthetic Enamel Air Drying, Shade Apple Green.
